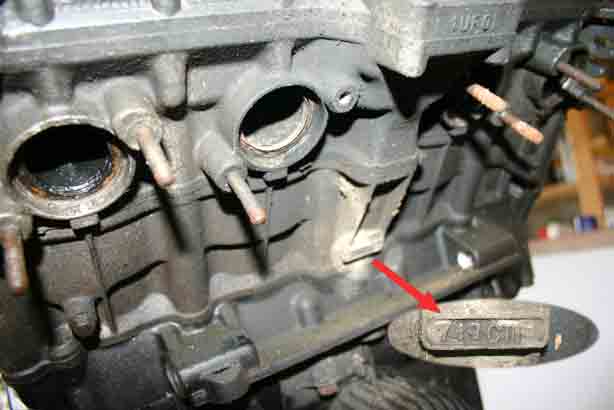

Identifying Your Engine Size
THE ENGINE SIZE NUMBER IS LOCATED JUST ABOVE THE OIL FILTER,
IN THIS INSTANCE IT’S THE 750CC...OR AS INDICATED 749. THE US 700CC, READS 697
Dealer Assembly Manual
Assembly Manual, 16 pages with the odd bits to interest.

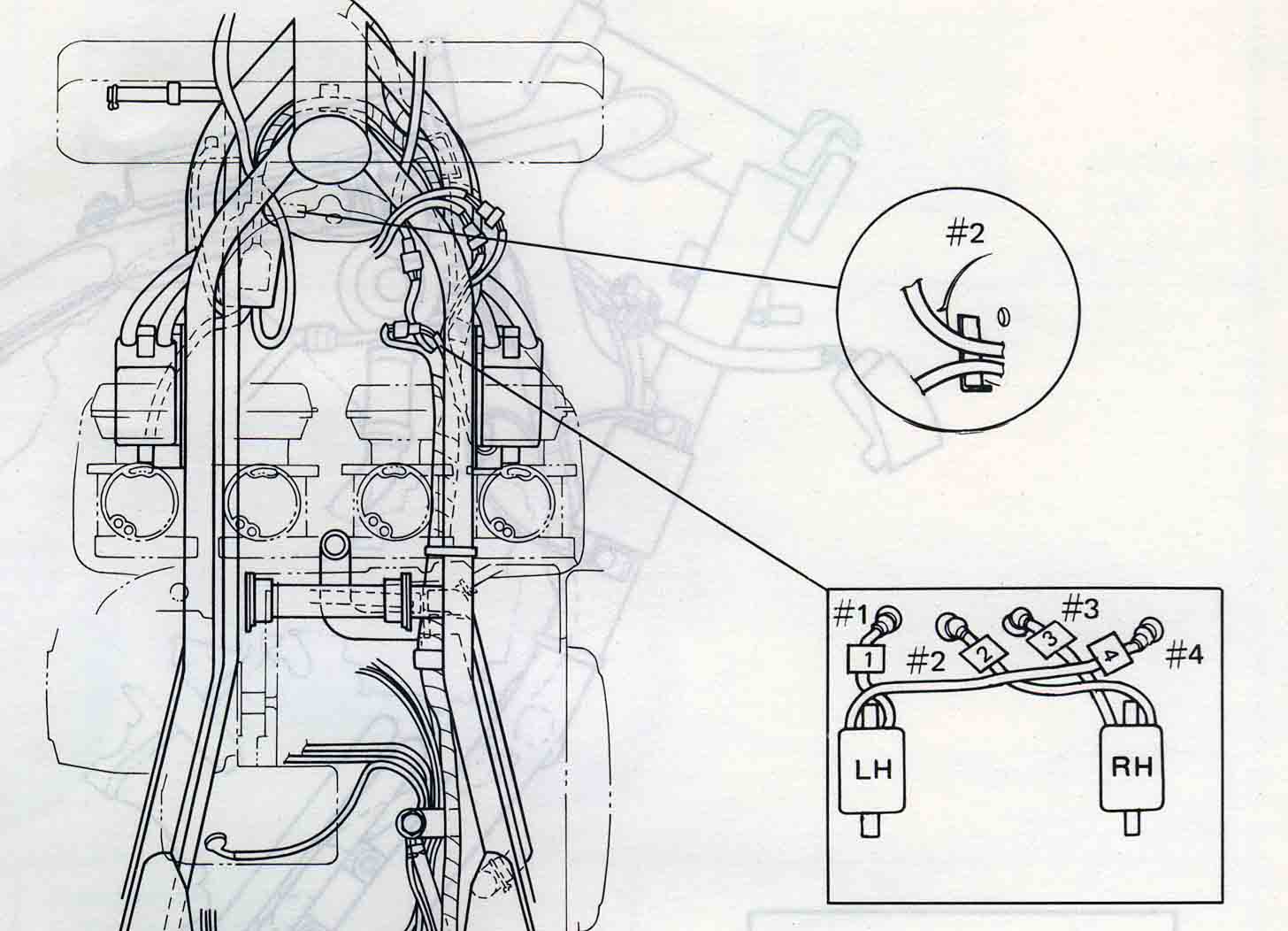

Plug - Coil Layout
A very useful little diagrammed

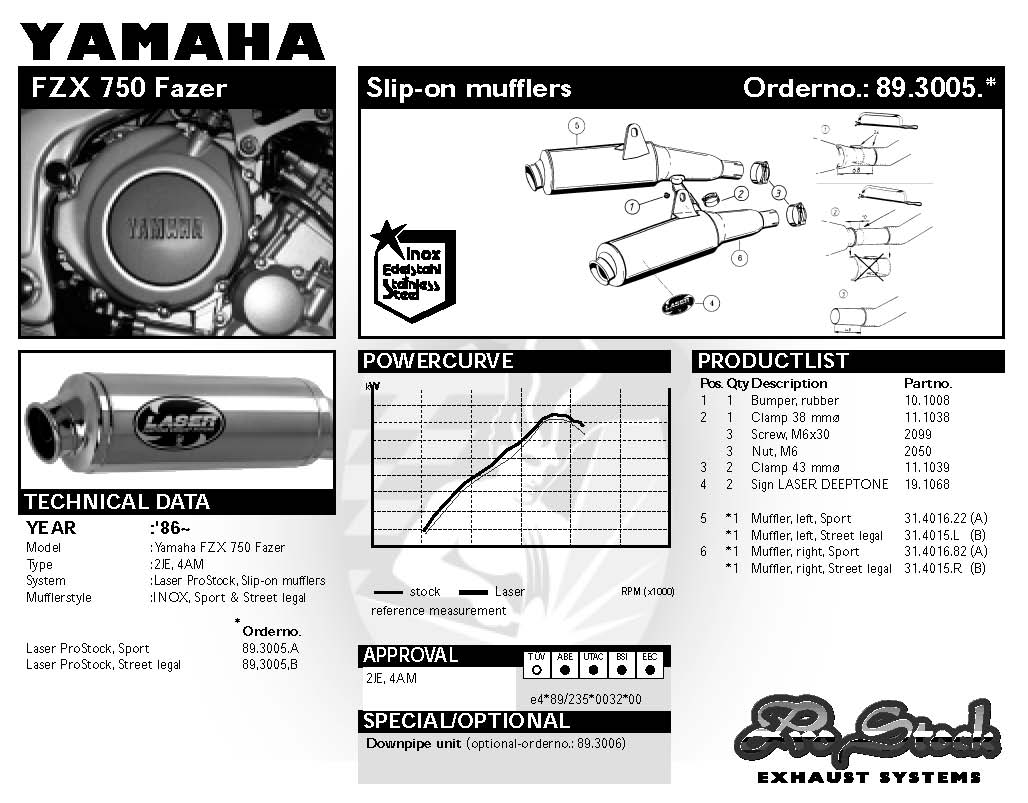

Laser Exhaust
If you can still find the standard Yam spec system it will cost you about £1,100.00.
So look to these chaps for a more completive price of about £500.00.
Predator, do a similar system,
Bearings
A Little bit of useful information courtesy of Chris Lawrence
A vast number of bikes use the same swing arm bearings as the FZX750 ( IKO No TA2530Z) rather than pay Yamaha £40
for a set if you go to these guys http://www.eriks.co.uk/branchfinder/
You will pick them up at £5.00 plus vat each!.
So next time you pull out a bearing out check the number stamped on it,
forget the Yamaha part number and buy locally,
Wyko have branches all over the place.
FZX750 & FZ750 Comparison
FAZER-700 Spec Sheet
Airbox Restriction
There's a rubber bung in the airway, for further details on the derestriction process

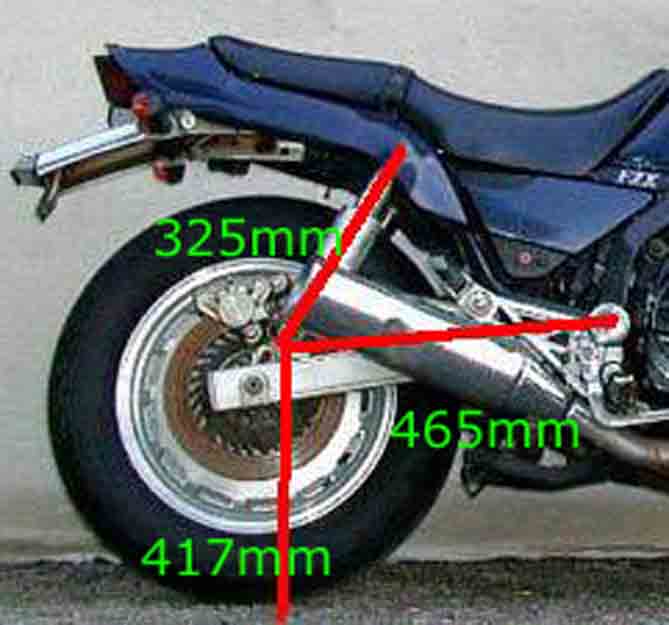

Rear shock Dims

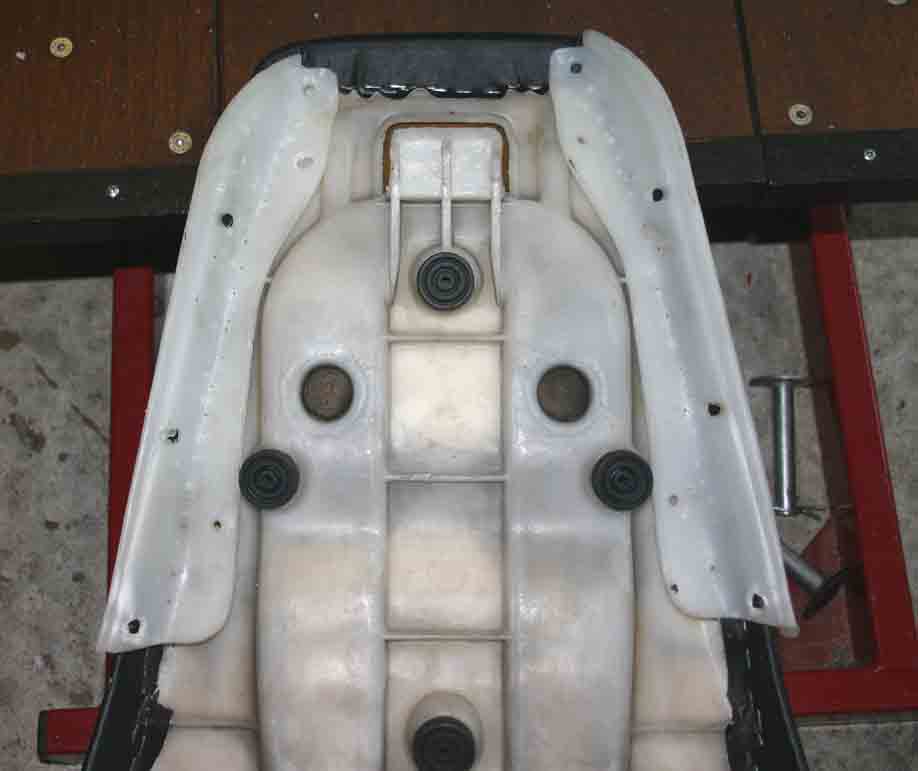

Fitting a Grab Rail

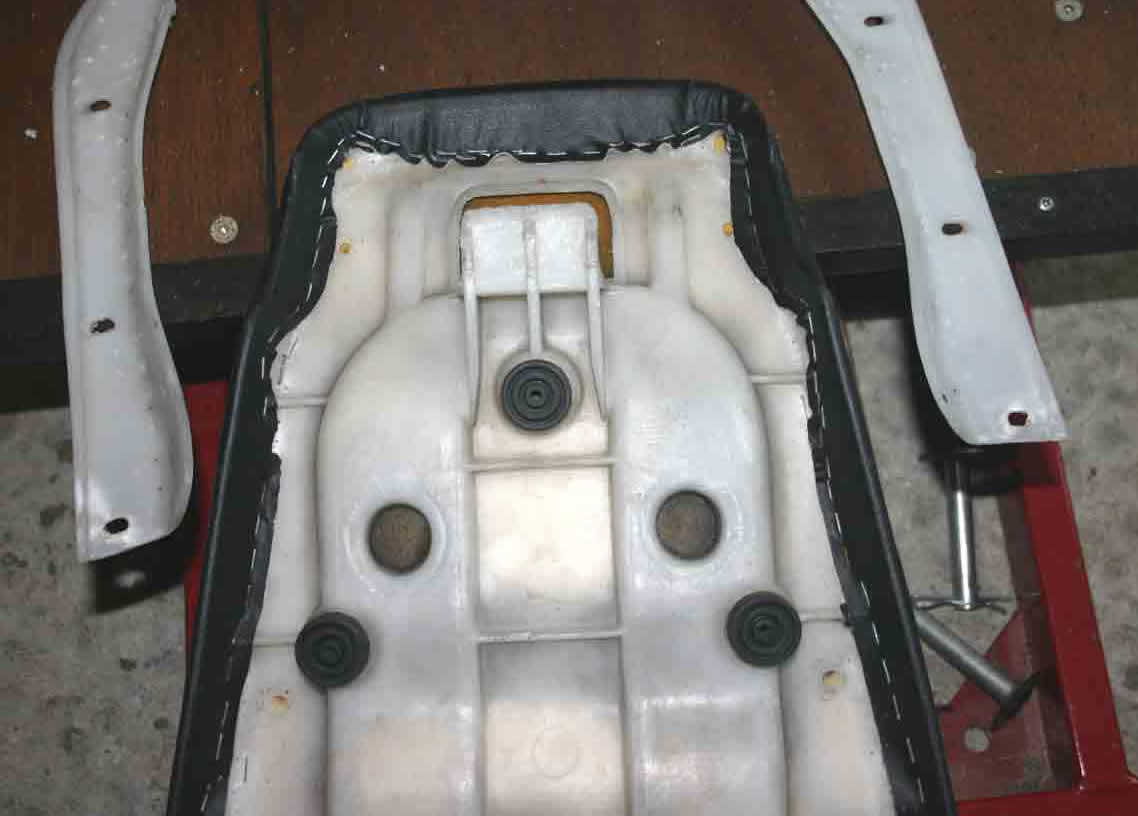

To make the standard Jap FZX seat accommodate a grab rail
the above parts need to be removed from the plastic base; they are pop riveted in,
Un-pick the upholstery and drill out the rivets. Re-staple the vinyl back in place.
Seat Recover
The above no more than £70.00
More creative personal designs can be produced with enough info and direction.
Thanks WOZ
E-Mail at info@fzx750.co.uk

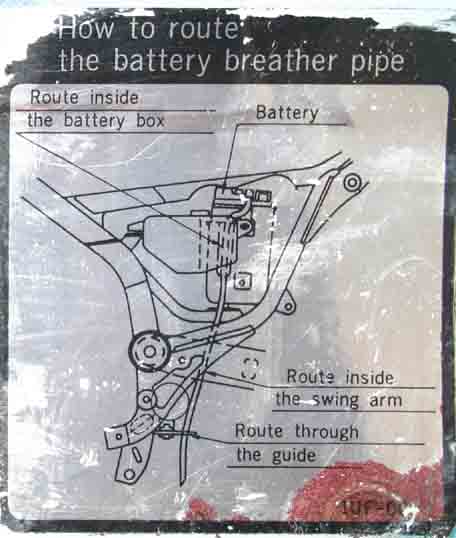

Battery Breather Pipe
UK Insurance Write-Off Categories
Download another useful document
__________________________________________________________________________
In Case of Emergency
BOIL IN THE BAG FZX!! :-)
Found this on a Jap Ebay site, I was out bid!!!
